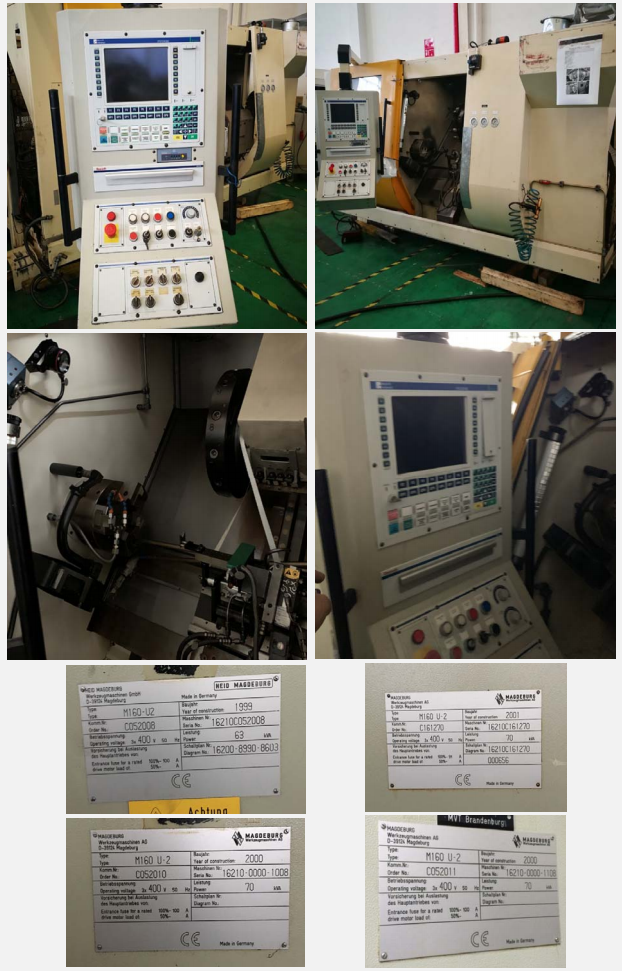

制造厂商 / Manufacturer: | 马格德堡（MAGDEBURG） |
机床型号 / Machine model: | M160-U2 |
出厂日期 / Year of produce: | 1999, 2001, 2000, 2000 |
机床编号 / Serial No.: | 16210C052008, 16210C161270, 162100001008, 162100001108 |
数控系统 / CNC control system: | Indramat MTC 200 |
最大车削直径 / Max. turning diameter: | 390 mm |
最大车削长度 / Max. turning length: | 800 mm |
床身上最大回转高度 / Max. swing over bed | 500 mm |
X轴行程 / X axis travel: | 275 mm |
Z轴行程 / Z axis travel: | 870 mm |
X轴进给速度 / X feed rate: | 20 m/min |
Z轴进给速度 / Z feed rate: | 30 m/min |
主轴转速 / Spindle speed: | 10~5000 rpm |
主轴功率 / Spindle power: | 41.9 kW |
主轴扭矩 / Spindle torque: | 200 Nm |
刀库容量 / Capacity of tool magazine: | 12 pos |
尾座滑枕直径 / Tailstock quill diameter: | 110 mm |
尾座滑枕行程 / Tailstock quill travel: | 120 mm |
尾座顶尖锥度 / Tailstock taper: | MK4 |
总连接负载 / Total connecting power: | 48 kVA |
机床毛重 / Machine gross weight: | 8300 kg |
机床外形尺寸 / Machine dimensions: | 5400 x 5000 x 2700 mm |
装置和附件 / Equipments & Accessories: | Indramat数控系统 / Indramat CNC control |
| UTS40快速刀柄 / UTS40 fast tool holder |
| C轴 / C axis |
| 数控尾座和中心架 / Controlled tailstock and steady rest |
| 集成液压站 / Integrated hydraulic station |
| 线缆、管路、支架和护罩 / Cables, pipes, stands and covers |
| 技术资料 / Technical documents |
